JZ1200-13S Curb Stone Cutting Machine is a high-efficiency multi-blade stone cutting solution specially designed for kerbstone, granite roadside stone, and large-scale municipal stone processing. Equipped with a combination structure of 1+12 saw blades, this machine can perform multiple parallel cuts in one operation, greatly improving production efficiency and reducing repeated positioning time.

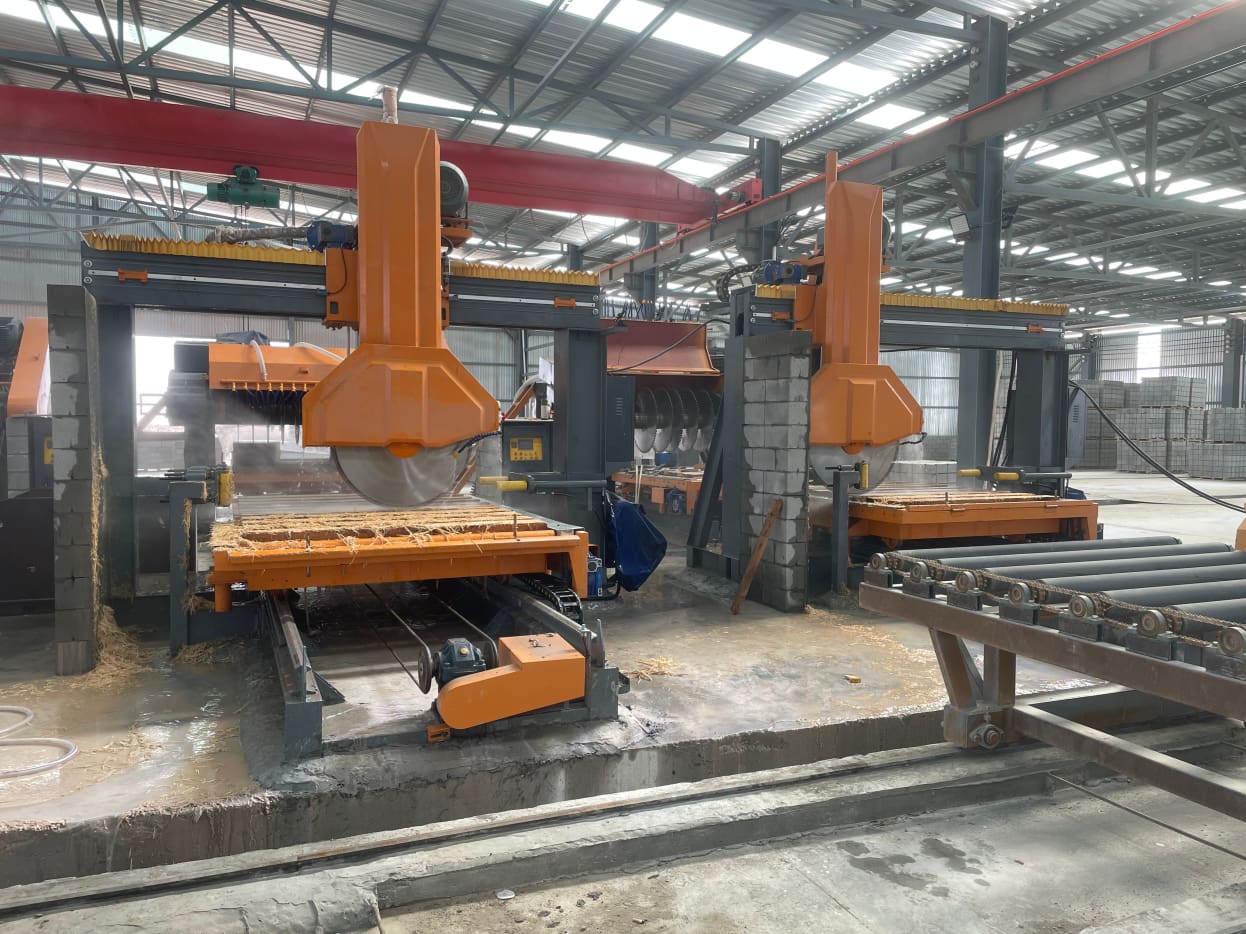

The JZ1200-13S Curb Stone Cutting Machine is a combination-type stone sawing machine integrating one main cutting blade and twelve auxiliary blades, allowing operators to complete multiple groove cutting and strip cutting processes simultaneously. Compared with traditional single-blade bridge saws, this multi-blade configuration significantly improves output capacity when producing large quantities of uniform kerbstones.

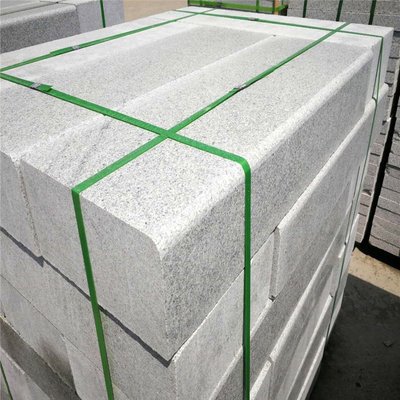

With a maximum 12-piece saw blade installation capacity, 450mm vertical cutting stroke, and 2700×1800×450mm maximum feeding size, the machine is suitable for continuous production of granite curbstones, road edging stones, landscape paving stones, and municipal construction materials.
Core Features
1. 1+12 Blade Combination Cutting: Multiple Cuts In One Operation
1+12 Blade Combination Cutting: Equipped with one main blade and twelve auxiliary blades, the machine can process multiple parallel cutting lines simultaneously, greatly improving curb stone production efficiency compared with traditional single blade cutting methods.
2. High Volume Production Capability: Designed for Standardized Kerbstone Manufacturing
High Volume Production Capability: The multi-blade structure allows factories to continuously produce uniform roadside stones, reducing repeated positioning operations and improving daily output for large construction orders.
3. Large Cutting Capacity: Handles Thick and Large Stone Materials
Large Cutting Capacity: With a maximum cutting size of 2700×1750×450mm and 450mm vertical stroke, the machine is suitable for processing thick granite, marble, basalt, and other hard stone materials.
4. Powerful Cutting System: Stable Performance for Heavy Stone Processing
Powerful Cutting System: The 55kW main motor provides strong cutting power for continuous operation, ensuring stable blade rotation and efficient material removal during large-scale stone production.
5. Precision Batch Cutting: Maintains Consistent Stone Dimensions
Precision Batch Cutting: The rigid machine structure and multi-saw arrangement help maintain consistent cutting width and size, meeting strict dimensional requirements for municipal and landscape stone projects.
6. Industrial Structure Design: Built for Long-Term Factory Operation
Industrial Structure Design: The heavy-duty frame with approximately 10-ton weight improves machine stability and reduces vibration when cutting large quantities of dense natural stone.
Technical Parameters
| Model | DF1200-12S | DF1200-1S | |||||
| Maximum blade diameter | Φ1000-1200mm | Φ1000-1200mm | |||||
| Maximum number of saw blades | 10-12pcs | 1pcs | |||||
| Maximum Cutting Size | 2700*1750*450mm | 2700*1750*450mm | |||||
| Maximum vertical stroke | 450mm | 450mm | |||||
| Operating voltage | 3phase380V | 3phase380V | |||||
| Main motor power | 55kw | 22kw | |||||
| Worktable size(L*W) | 2500*2150mm | 3230*2150mm | |||||
| Maximum feeding size (L*W*H) | 2700*1800*450mm | 2700*1800*450mm | |||||
| Weight | 10t | 8t | |||||
| Overall dimensions (L*W*H)外形尺寸 | 6000*5500*3100mm | 5600*4500*4600mm | |||||
Applications
Why Choose LZM8 Compared With Traditional Processing Methods?
| Processing Method | Manual Litchi Surface Processing | LZM8 Automatic Stone Litchi Machine |
|---|---|---|
| Production Efficiency | Depends heavily on workers and requires long processing time | 8 heads work simultaneously for continuous production |
| Surface Consistency | Texture depth varies according to operator skills | Uniform patterns with stable processing pressure |
| Labor Requirement | High labor intensity | Reduced manual operation requirements |
| Large Slab Processing | Difficult to maintain consistency | 1250mm working width for efficient slab processing |
| Production Capacity | Suitable for small quantities | Designed for industrial batch production |
Expert Q&A
Q1: What is the difference between litchi surface and polished stone surface?
A: Polished stone provides a smooth and reflective appearance, while litchi surface creates a rough natural texture with better anti-slip performance, making it more suitable for outdoor applications.
Q2: Can LZM8 process large stone slabs continuously?
A: Yes. With a 1250mm working width and automatic multi-head structure, the machine is designed for continuous processing of stone slabs used in construction and landscaping projects.
Q3: How does LZM8 improve production efficiency compared with manual processing?
A: Manual bush hammering requires experienced workers and produces variable results. LZM8 uses automatic mechanical processing to provide consistent textures while reducing labor requirements.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province. The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
