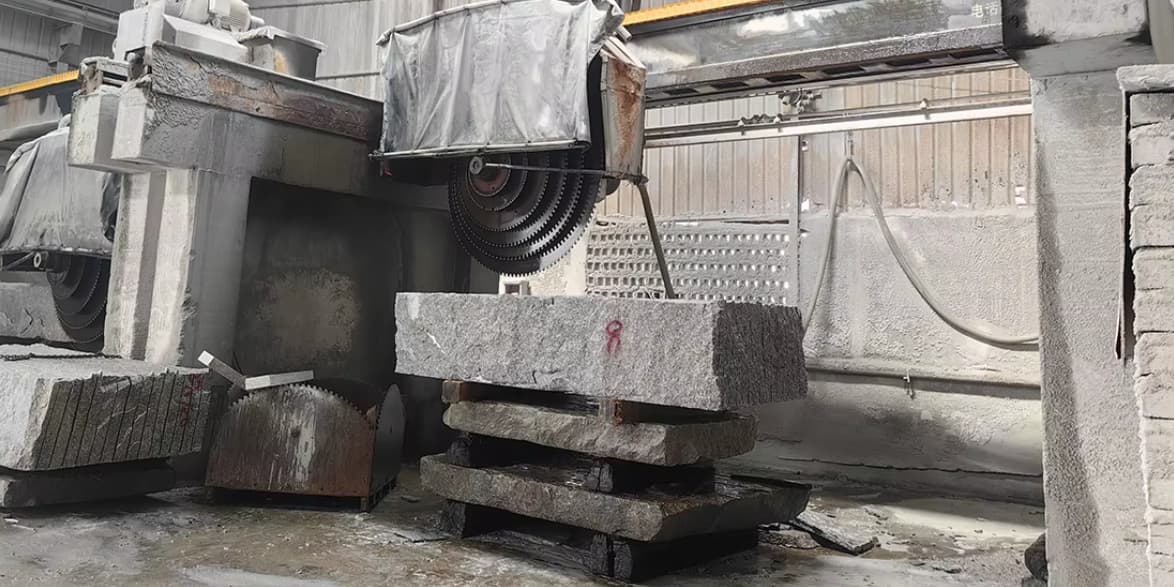

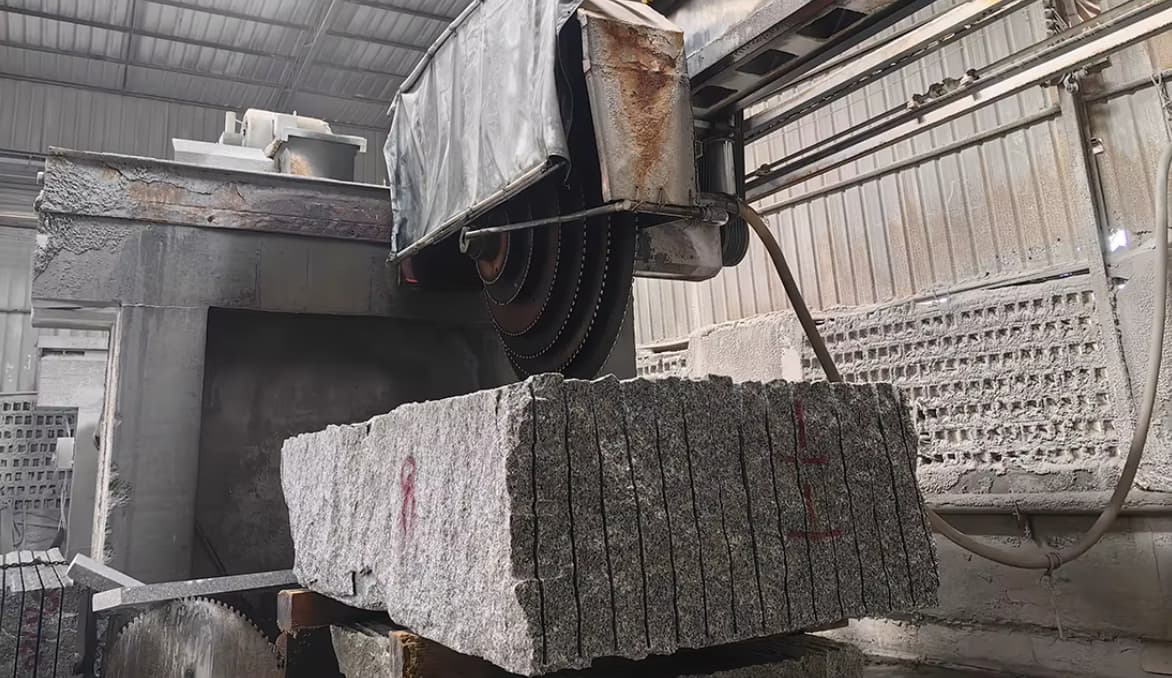

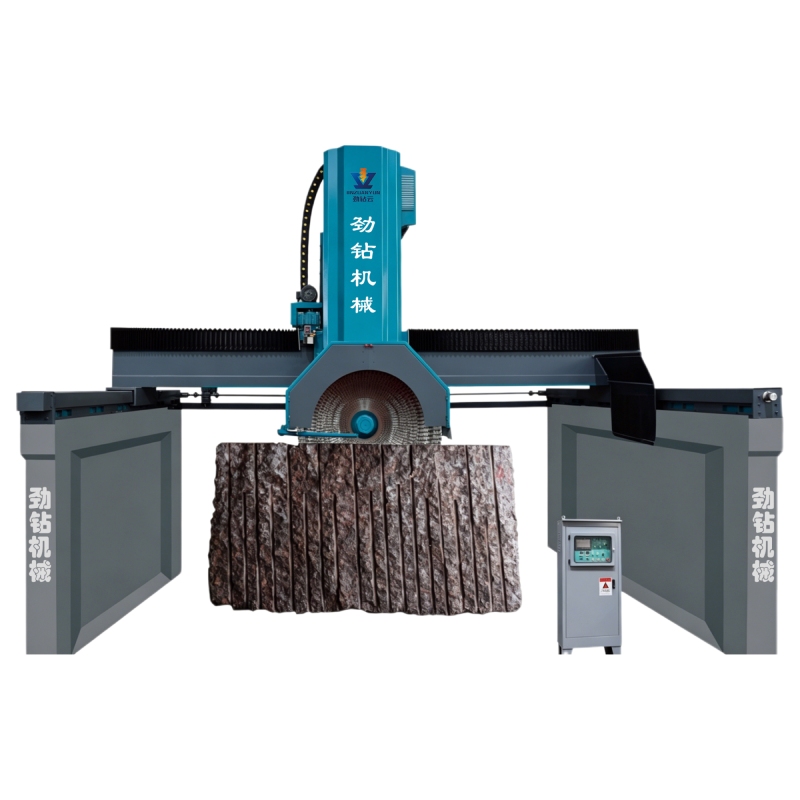

Multi-Blade Bridge Block Cutting Machine for Large Stone Blocks
The Multi-Blade Bridge Block Cutting Machine is a heavy-duty solution designed for efficient cutting of large granite, marble, and natural stone blocks. Equipped with up to 9 diamond saw blades and a powerful 55kW main motor, it significantly increases production capacity while maintaining stable cutting performance. Its large working stroke and robust bridge structure make it ideal for processing oversized stone blocks in industrial-scale stone factories.
Modelo do produto :
ZJ/PC 2500-4DCertificação :
CE, ISOEspecificações :
7500x700x580mmOrigem :
QuanzhouPorta :
XiamenAmostras disponíveis :
NoServiço pós-venda :
ProvidePeríodo de garantia :
1 Year
The Multi-Blade Bridge Block Cutting Machine is engineered for high-volume stone block processing, helping manufacturers convert large raw stone blocks into slabs with greater efficiency and lower production costs. Featuring a maximum blade diameter of 2500mm, a cutting height of up to 1050mm, and support for up to 9 blades operating simultaneously, the machine can complete multiple cuts in a single pass, dramatically improving throughput compared with conventional single-blade systems.
Built with a heavy-duty bridge structure, a φ165mm pillar system, and a reinforced 7500×700×580mm cross beam, the machine delivers excellent stability during continuous operation. The 3500mm left-right travel and 2200mm front-back travel allow operators to process large granite and marble blocks with precision and consistency.
Core Features
1). Heavy-Duty Block Processing: Handle Large Stone Blocks with Ease
Featuring a 2500mm maximum blade diameter and 1050mm cutting height, the machine is designed for cutting oversized granite and marble blocks. It can process large quarry blocks that are commonly used for slab production, architectural stone, and monument manufacturing.
2). Powerful 55kW Drive System: Maintain Stable Performance Under Heavy Loads
The high-power 55kW main motor delivers strong and consistent cutting force when processing hard materials such as granite, basalt, and dense natural stone. Even during extended production shifts, the machine maintains smooth operation and reliable cutting efficiency.
3). Reinforced Bridge Structure: Ensure Accuracy During Continuous Operation
Built with a heavy-duty bridge frame, φ165mm support pillars, and a 7500×700×580mm reinforced cross beam, the machine minimizes vibration and structural deformation. This results in more consistent slab thickness and improved cutting quality throughout long production runs.
4). Large Travel Capacity: Adapt to Various Block Sizes
With 3500mm left-right travel, 2200mm front-back travel, and a 1350mm lifting stroke, operators can process different stone block dimensions without frequent repositioning, improving workflow efficiency and reducing downtime.
5). Lower Production Costs: Improve Factory Profitability
By cutting multiple slabs simultaneously, the machine reduces labor requirements, shortens production time, lowers energy consumption per slab, and improves overall factory productivity, helping stone manufacturers achieve a faster return on investment.
Technical Parameters
| Size of Cross beam | 7500x700x580mm |
| Diameter of pillar | φ165mm |
| Length of side beam | 3700mm |
| Main motor | 55kw |
| Size of spindle | 500xφ120mm |
| Lifting stroke | 1350mm |
| Max diameter of blade | 2500mm |
| Max cutting height | 1050mm |
| Left-right stroke | 3500mm |
| Front-back stroke | 2200mm |
| Max quantity of blades | 9pcs |
Applications
1). Granite Slab Manufacturing: The machine is widely used in granite processing plants to convert large quarry blocks into slabs for countertops, flooring, staircases, wall panels, and construction projects. Multiple blades allow factories to maximize output from every cutting cycle.
2). Marble Processing Facilities: For marble manufacturers, the machine delivers stable and uniform slab cutting, providing ideal raw materials for polishing, edge finishing, and interior decoration applications.
3). Monument and Tombstone Production: The machine can process large granite blocks commonly used in tombstones, monuments, memorial walls, and cemetery products. Accurate slab production helps improve efficiency in downstream engraving and polishing operations.
4). Natural Stone Export Factories: Export-oriented stone companies can utilize the machine to produce large quantities of standardized slabs, helping fulfill container-scale orders while maintaining consistent product quality for overseas markets.
5). Building and Infrastructure Projects: The machine is suitable for manufacturing stone panels used in hotels, airports, shopping centers, government buildings, and commercial construction projects where large volumes of stone materials are required.
6). Quarry Processing Centers: Installed directly in stone processing centers near quarries, the machine enables manufacturers to convert raw stone blocks into finished slabs efficiently, reducing transportation costs and increasing material utilization rates.
Why Choose a Multi-Blade Block Cutting Machine Instead of a Single-Blade Saw?
| Comparison Item | Multi-Blade Block Cutter | Traditional Single-Blade Cutter |
|---|---|---|
| Number of Blades | Up to 9 blades | 1 blade |
| Production Efficiency | Multiple slabs per cut | One slab per cut |
| Labor Requirement | Lower | Higher |
| Processing Speed | Faster | Slower |
| Cost Per Slab | Lower | Higher |
| Factory Throughput | Higher | Moderate |
For factories processing hundreds of square meters of stone daily, a multi-blade system can significantly increase output while reducing operating costs.
Expert Q&A
Q1: How many blades can this machine support?
The machine can accommodate up to 9 cutting blades, allowing multiple slabs to be produced in a single cutting cycle.
Q2: What stone materials can be processed?
It is suitable for granite, marble, limestone, sandstone, quartz stone, and other natural stone materials.
Q3: What is the maximum cutting height?
The maximum cutting height is 1050mm, making it suitable for large stone blocks.
Q4: Why choose a multi-blade machine instead of a single-blade machine?
A multi-blade machine can cut several slabs simultaneously, significantly improving productivity and reducing the cost per slab.
Q5: Is the machine suitable for continuous factory operation?
Yes. The heavy-duty bridge structure, reinforced support system, and 55kW motor are designed for long production cycles and high-volume industrial environments.
Q6: Can blade spacing be customized?
Yes. Blade spacing can be adjusted according to the required slab thickness and production requirements.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
