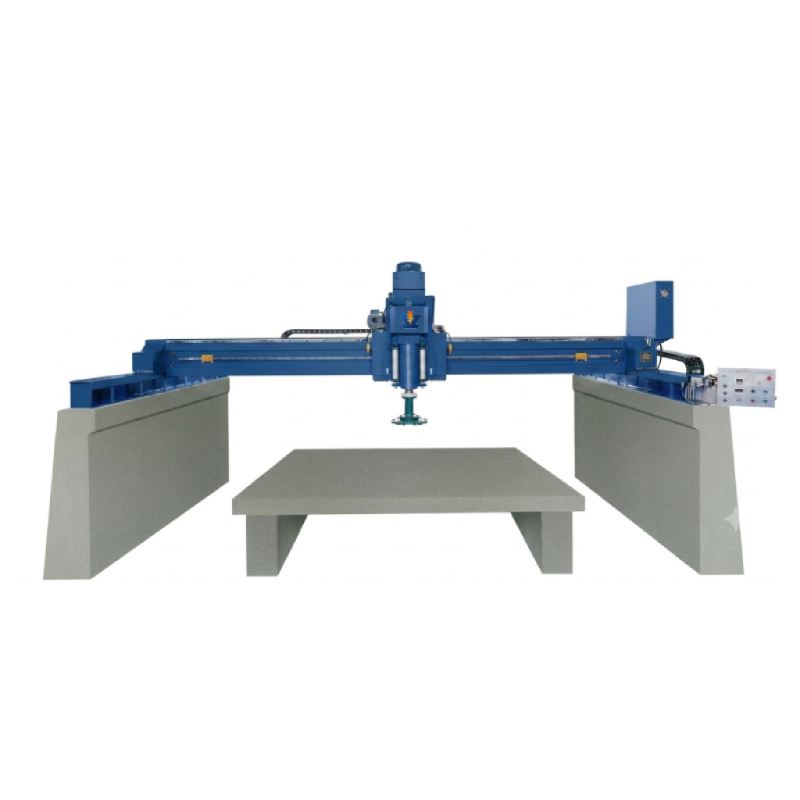

The Single Head Stone Slab Polishing Machine is designed for precision polishing of marble, granite, quartz, engineered stone, and other large-format stone slabs. Equipped with a powerful 7.5kW polishing motor and a tilting worktable, it delivers consistent surface gloss, stable pressure control, and efficient finishing for both standard polishing and edge-area refinement.
Modelo do produto :
JZ-1PCertificação :
CE, ISOEspecificações :
5500x4900x2500mmOrigem :
QuanzhouPorta :
XiamenAmostras disponíveis :
NoServiço pós-venda :
ProvidePeríodo de garantia :
1 Year
The Single Head Stone Slab Polishing Machine provides a reliable solution for manufacturers requiring high-quality surface finishing on natural and engineered stone slabs. Featuring a spacious 3200 × 2000 mm worktable with 0–85° hydraulic tilting, the machine allows operators to load and unload heavy slabs safely while improving overall production efficiency.

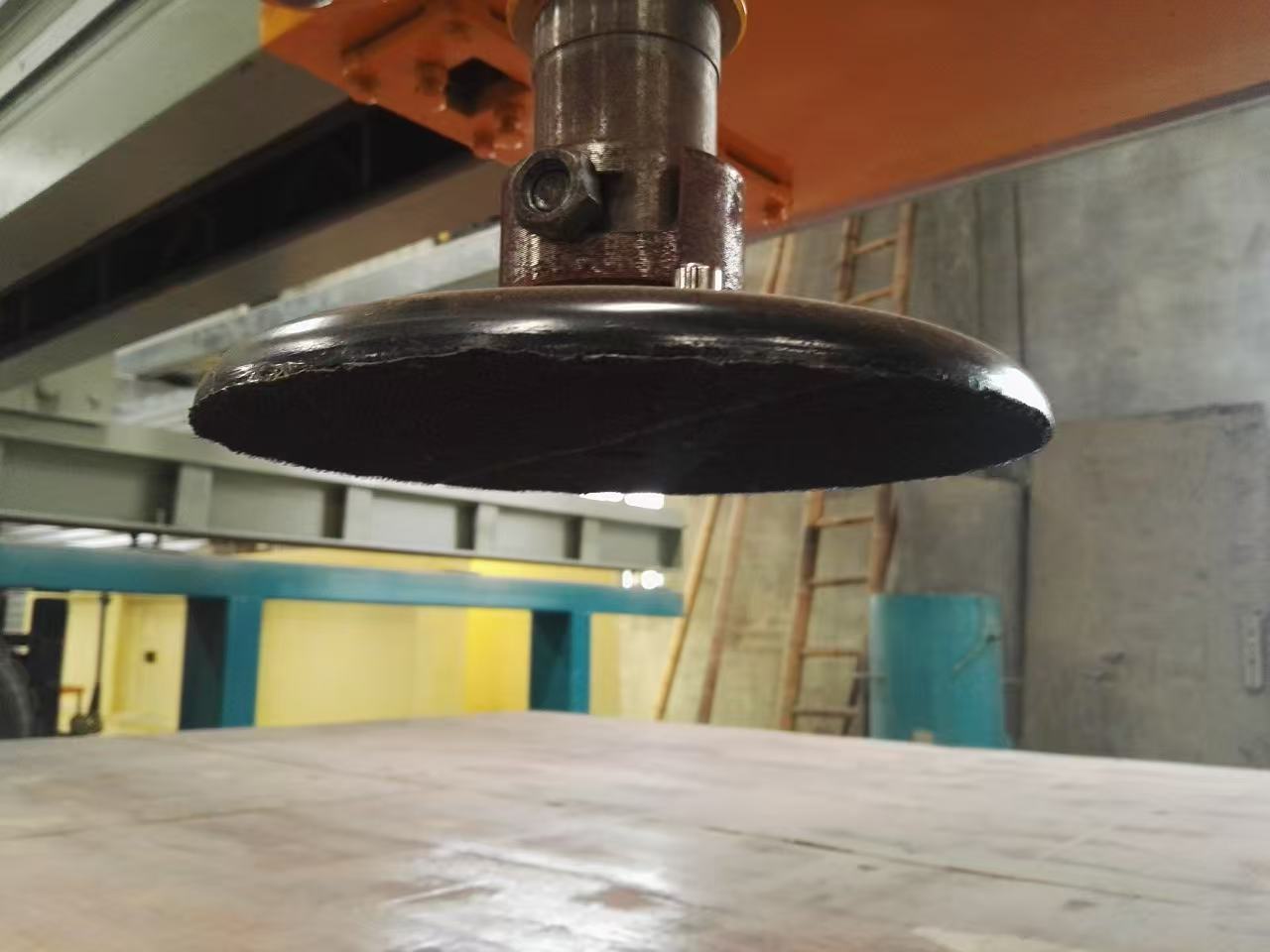

Powered by a 7.5kW four-pole motor, the polishing head maintains stable torque during continuous operation, producing uniform gloss across the slab surface while minimizing polishing marks. The 150 mm pneumatic vertical stroke automatically adapts to slight thickness variations, ensuring consistent polishing pressure on materials from 10 mm thick upward.
Core Features
1. Precision Surface Finishing: Uniform Gloss Across Every Slab
Provides stable polishing pressure to achieve consistent brightness while reducing swirl marks and uneven surface reflection.
2. Single Polishing Head: Flexible Production for Multiple Stone Types
Ideal for customized orders, small-batch production, sample processing, and premium stone finishing without lengthy production line adjustments.
3. Large Tilting Worktable: Easier Loading and Safer Handling
The 3200 × 2000 mm table tilts from 0° to 85°, allowing heavy slabs to be positioned with less manual effort and improved workplace safety.
4. Powerful 7.5kW Drive System: Stable Performance During Long Operations
The four-pole motor delivers continuous torque for extended polishing cycles while maintaining stable polishing quality under daily industrial workloads.
5. Automatic Vertical Compensation: Consistent Contact Pressure
The 150 mm pneumatic lifting stroke automatically adjusts polishing height to accommodate different slab thicknesses and improve surface consistency.
6. Efficient Water Cooling System: Extends Abrasive Service Life
Continuous water supply cools both the polishing pad and stone surface, helping reduce heat buildup, minimize dust, and improve polishing efficiency.
Technical Parameters
| No. of polishing head | 1pc | ||||||
| Size of worktable | 3200 x 2000mm | ||||||
| Table tilting degree | 0-85° | ||||||
| Main motor | 7.5kw，4pole | ||||||
| Air pressure Vertical Stroke | 150mm | ||||||
| Max. processing Size (Length) | 3000mm | ||||||
| Max. processing Size (Width) | 2000mm | ||||||
| Min. processing Size (Thickness) | 10mm | ||||||
| Water Consumption | 6m³/h | ||||||
| Dimension(LxWxH) | 5200×4700×2300mm | ||||||
| Weight | 4500Kg(steel structure) | ||||||
| Floor space (LxWxH) | 5500x4900x2500mm | ||||||
| Air compressor | According to customers needs | ||||||
Applications
Single Head vs. Multi-Head Polishing Machine
| Single Head Polishing Machine | Multi-Head Polishing Line |
|---|---|
| More flexible for different slab sizes and materials | Best suited for mass production of identical slabs |
| Lower initial investment and operating cost | Higher investment with larger factory space required |
| Easy to switch between polishing tasks | More efficient for continuous high-volume production |
| Ideal for custom orders, samples, and premium finishing | Ideal for standardized industrial production |
Expert Q&A
Q1: Why choose a single head polishing machine instead of a multi-head line?
A: A single head machine offers greater flexibility for custom orders, small batches, and different stone varieties. It also requires less investment and occupies less workshop space than a fully automatic polishing line.
Q2: Can the polishing pressure be adjusted for different stone thicknesses?
A: Yes. The polishing head features a 150 mm pneumatic vertical stroke, allowing it to automatically adapt to different slab thicknesses and maintain stable polishing pressure.
Q3: Is water required during polishing?
A: Yes. The machine uses approximately 6 m³/h of water to cool the polishing pad, reduce dust, improve surface quality, and extend abrasive tool life.
Company Profile
Quanzhou Jinzuan Technology Co., Ltd.
Quanzhou Jinzuan Technology Co.,Ltd. is located in Shuitou Industrial Avenue with convenient transportation. It is a company integrating R & D, manufacturing, sales and technical services, specializing in manufacturing a series of intelligent CNC stone processing equipment.
Why Partner Choose Us?
1).Superior Product Quality
2).High Cost Performance
3).Advanced R&D & Technology
4).Comprehensive Customer Support & Service
5).Professional & Experienced Technical Team
6).Global Standards
Certifications
Exhibitions
Our Service
Pre-sale: consulting support
according to customer's requirements to install the machine
visit the factory
After-sale: machine installation and usage guidance
one-year warranty period
FAQ
1.What will the payment process be?
TT : 30% as deposit, 70% before shipping.
2.How many days will take shipping?
About 30 days for production time. Shipping date from Xiamen port to your port need to be check.
3.Who will provide the technical support to installing the device?
1).Our engineer could train you for install and software using and design in our factory for free. One week is enough. Our factory is at Shuitou town, Fujian province.The biggest stone manufacture area in China. Maybe also the biggest importer &exporter of marble all over the world.
2).Our engineer could service you 24 hours online by skype, whatsapp, wechat, facebook message or by cellphone.
3).English manual for machine using and maintaining can be sent.
4).Video for installation and machine using and maintaining can be sent.
